MSQ Dual Rod Cylinder SMC Type Lightweight Compact Rotary Pneumatic Cylinder

Prius pneumatic Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

MSQ Dual Rod Cylinder SMC Type Lightweight Compact Rotary Pneumatic Cylinder

  • 1
  • 2

Brand Name : PRIUS,XINYI or OEM

Model Number : MSQ

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

name : Rotary Table Cylinder

Working Medium : Air(non-lube)

Max Pressure : 1 MPA

Max Swing Angle : 190°

Port Size : M5X0.8/RC1/8"

Action Type : Double acting

Contact Now

MSQ Compact Rotary Table Pneumatic Cylinder , Linear Actuator Gas Cylinder

SMC type MSQ Compact rotary table double acting Pneumatic air cylinder Bore size 10mm-200mm e.g. MSQB-20-50A with magnet and rubber buffer or internal shock absorber

Quick Detail:

* MSQ rotary table air cylinder SMC equvalent

* Integration of a table and rotary actuator

* Equipped with angle adjustment mechanism

* Easy alignment when mounting the load and body

* Easy mounting for variety worKpiece
* With large rolling element bearing.
* Pivoting angle adjustment range: 0~190
* With internal shock absorber,External absorber type for option
* Movement in direction of table's radial thrust: 0.01mm or less.
* Small size and light weight.
* Variety of installation options for space-saving.

* W ith self-lubricating bearing,lubrication free

* Pore size 10mm,20mm,30mm,50mm,70mm,100mm,200mm

Ordering Code

MSQ B 20 50 A
MSQ:Standard rotary table cyinder with magnet B:Basic type Bore Size Stroke:10~200mm Cushion model
10:10mm A:With adjustable angle screw(Rubber buffer)
20:20mm
30:30mm
50:50mm
70:70mm R: With shock absorber
100:100mm
200:200mm

Specification

Bore size(mm) 10 20 30 50 70 100 200
working Medium Filtered compressed air
Motion Pattern Double action
Pressure Endurance 1.5MPa
Operating pressure range (With adjutable screw) 0.1~1.0MPa
Operating pressure range (Shock absorber) 0.1~0.6MPa
High precision type minimum working pressure 0.2MPa 0.1MPa
Ambient Temperature 0~60ºC
Buffer cushioning With adjutable screw Rubber bufer
With shock absorber Shock absorber internal
Angel adjustable range 0~190°
Maximum rotation 190°
Piston diameter Ø15 Ø18 Ø21 Ø25 Ø28 Ø32 Ø40
Port size End port size M5X0.8 M5X0.8 RC1/8 RC1/8 RC1/8 RC1/8 RC1/8
Side port size M5X0.8 M5X0.8 M5X0.8 M5X0.8 M5X0.8 M5X0.8 M5X0.8

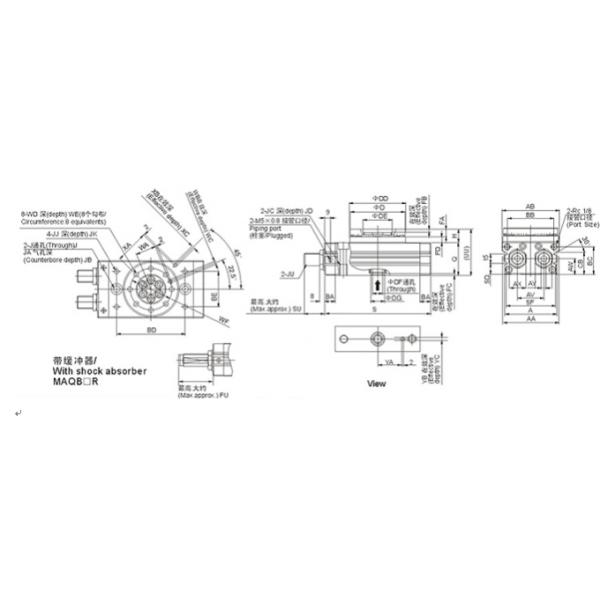

AA A AU AV AW AX AY BA BB BC BD BE CA CB D DD DE DF DG FA FB FC FD H J JA JB
10 55.4 50 8.6 20 15.5 12 4 9.5 34.5 27.8 60 27 4.5 28.5 46h9 46h9 20h9 5 15h9 8 4 3 4.5 13 6.8 11 6.6
20 70.8 65 10.6 27.5 16 14 5 12 46 30 67 34 6 30.5 60h9 61h9 28h9 9 17h9 10 6 2.5 6.5 17 8.6 14 8.5
30 75.4 70 10.6 29 18.5 14 5 12 50 32 84 37 6.5 33.5 65h9 67h9 32h9 9 22h9 10 4.5 3 6.5 17 8.6 14 8.5
50 85.4 80 14 38 22 19 6 15.5 63 37.5 100 50 10 37.5 75h9 77h9 35h9 10 29h9 12 5 3 7.5 20 10.5 18 10.5

JC JD JJ JU P Q S SD SE SF SU UU WA WB WC WD WE WF XA XB XC YA YB YC FU
10 M8×1.25 12 M5×0.8 M8×1 M5×0.8 34 92 9 13 45 17.7 47 15 3H9 3.5

M5×

0.8

8 32 27 3H9 3.5 19 3H9 3.5 31.5
20 M10×1.5 15 M6×1 M10×1 M5×0.8 37 117 10 12 60 25 54 20.5 4H9 4.5

M6×

1

10 43 36 4H9 4.5 24 4H9 4.5 34.7
30 M10×1.5 15 M6×1 M10×1 RC 1/8 40 127 11.5 14 65 25 57 23 4H9 4.5

M6×

1

10 48 39 4H9 4.5 28 4H9 4.5 34.7
50 M12×1.75 18 M8×1.25 M14×1.5 RC 1/8 46 152 14.5 15 75 31.4 66 26.5 5H9 5.5

M8×

1.25

12 55 45 5H9 5.5 33 5H9 5.5 51.7

MSQ Dual Rod Cylinder SMC Type Lightweight Compact Rotary Pneumatic CylinderMSQ Dual Rod Cylinder SMC Type Lightweight Compact Rotary Pneumatic Cylinder

Bore size AA AB A AV AW AX AY BA BB BC BD BE CB D DD DE DF DG FA FB FC FD H J JA JB
70 90 92 84 42 25.5 27 8 17 75 44.5 110 57 36 88h9 90h9 46h9 16 22h9 12.5 5 3.5 6 22 10.4 17.5 10.5
100 101 102 95 50 29.5 27 8 17 85 50.5 130 66 42 98h9 100h9 56h9 19 242h9 14.5 6 3.5 12 27 10.4 17.5 10.5
200 119 120 113 60 36.5 36 10 24 103 65.5 150 80 57 116h9 118h9 64h9 24 32h9 16.5 9 5.5 15 32 14.2 20 12.5

Bore size JC JD JJ JK JU Q S SD SF SU UU WA WB WC WD WE WF XA XB XC YA YB YC
70 M12×1.75 18 M8×1.25 10 M20×1.5 53 170 18 79 34.2 75 32.5 5H9 5.5 M8×1.25 12.5 67 54 5H9 3.5 39 5H9 3.5
100 M12×1.75 18 M8×1.25 10 M20×1.5 59 189 22 90 34.3 86 37.5 6H9 6.5 M10×1.55 14.5 77 59 6H9 4.5 49 6H9 4.5
200 M16×2 25 M12×1.75 13 M27×1.5 74 240 29 108 40.2 106 44 8H9 8.5 M12×1.75 16.5 90 69 8H9 4.5 54 8H9 6.5
