Black Knob Pneumatic Manual Valve K34R8-L8 4 / 2 Way 4 / 3 Way Manual Air Valve

Brand Name : PRIUS,XINYI or OEM

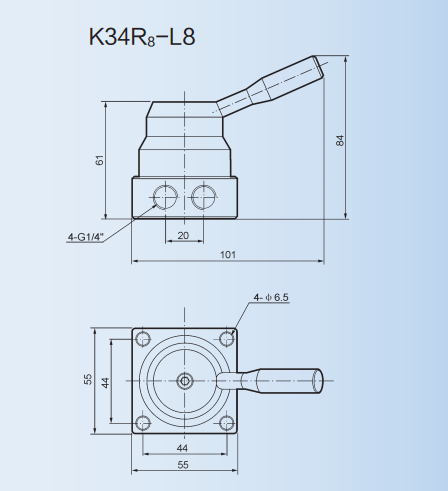

Model Number : K34R8-L8
Place of Origin : Ningbo,China
MOQ : 10pcs
Price : negotiation
Payment Terms : T/T, L/C, Western Union,Paypal
Supply Ability : 5000pcs per month
Delivery Time : 10~15 working days
Packaging Details : bag+box+catons+pallet
Name : hand switch valve
Working Medium : Air
Pressure Range : 0~0.8Mpa
Temperature Range : 0~60℃
Material : Aluminum
CV : 1.0
Contact Now

K34R8-L8 Series Hand Switching Valve 4 / 2 way 4 / 3 way Black Knob


K Series Two Position Four Way Three position four way hand switching valve port size G1/8”,G1/4” e.g K34L8D with Base joint connection

Quick Detail:

* K Series Hand Switching valve
* Three position Four Way,Two Position Four Way
* Port Size G1/4,G1/8
* With Four Port base joint connection type for option
* Switching angle 90º,sensitive repond acting
* Smooth switching,Long service life


Applications:

K series hand switching valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system


Specifiction


ModelHV400-02HV400-03HV400-04K34R8-L6K34R8-L8
Working Medium40 Micron Filtered Air
Effective Sectional Area30mm2(CV=1.68)18mm2(CV=1.00)
Port SizeG1/4″G3/8″G1/2″G1/8″G1/4″
Working-pressure Range0~0.8MPa
Operating Temperature0~60℃
