TSV Series Pneumatic Manual Valve 3 2 Pneumatic Valve With Machinery Locking

Brand Name : PRIUS,XINYI or OEM
Model Number : TSV
Place of Origin : Ningbo,China
MOQ : 10pcs
Price : negotiation
Payment Terms : T/T, L/C, Western Union,Paypal
Supply Ability : 5000pcs per month
Delivery Time : 10~15 working days
Packaging Details : bag+box+catons+pallet
Name : manual pneumatic valve
Working Medium : Air
Material : Aluminum
Motion Type : Direct Drive Type
Temperature Range : ~60℃
Port Size : G1/4"
Contact Now

TSV series Hand Level Valve with Machinery locking or Spring return 3 / 2 way


32mm,40mm body width Metalwork 70 series hand lever valve two position three way and two position five way port size G1/8,G1/4 e.g HLV322N-06S with spring return


Quick Detail:


* TSV series Hand Lever Valve Metalwork interchangeable

* Aluminum Alloy Material

* Two Position Three Way,Two Position Five Way

* Port Size G1/4,G1/8

* With spring return for option

* Enlarged safety area,keep from any leakage effective

* Smooth stroke travelling,sensitive respond action

* Easy to operate,Long service life


Applications:


TSV series hand lever valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system


Specifiction


ModelTSV86522M/STSV98322M/S
Working Medium40 Micron Filtered Air
Motion PatternDirect Drive Type
Effective Sectional Area18mm2(CV=1.00)
Port SizeG1/4″
Working Pressure0~0.8MPa
Operating Temp.0~60℃



Product Tags:

Manual Air Valve



Hand Operated Air Valve


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

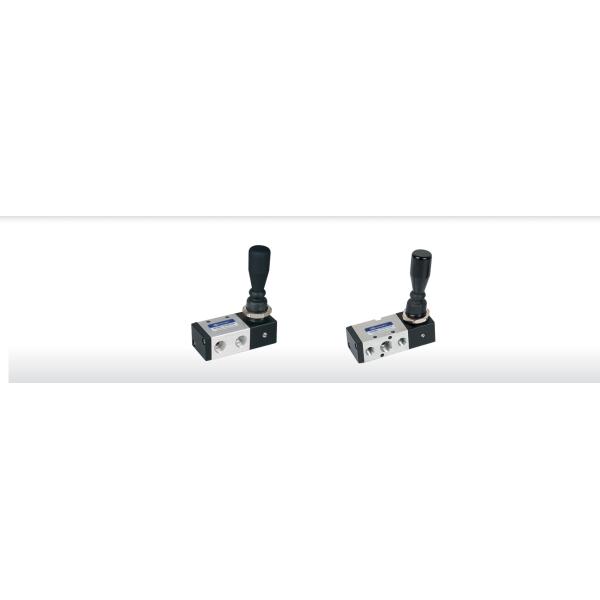

TSV Series Pneumatic Manual Valve 3 2 Pneumatic Valve With Machinery Locking Images
