3 / 2 Way Pneumatic Manual Valve 3R Single Head Hand Operated Air Control Valves

Brand Name : PRIUS,XINYI or OEM
Model Number : 3R210
Place of Origin : Ningbo,China
MOQ : 20pcs
Price : negotiation
Payment Terms : T/T, L/C, Western Union,Paypal
Supply Ability : 5000pcs per month
Delivery Time : 10~15 working days
Packaging Details : bag+box+catons+pallet
Name : hand operated pneumatic valve
Working Medium : 40 micron filtered air
Pressure Range : 0~0.8Mpa
Port Size : G1/8"
Way : 3/2 way
Cv : 0.89
Contact Now

3 / 2 way Hand - Draw Vavle 3R Single Head Double Position Black Knob

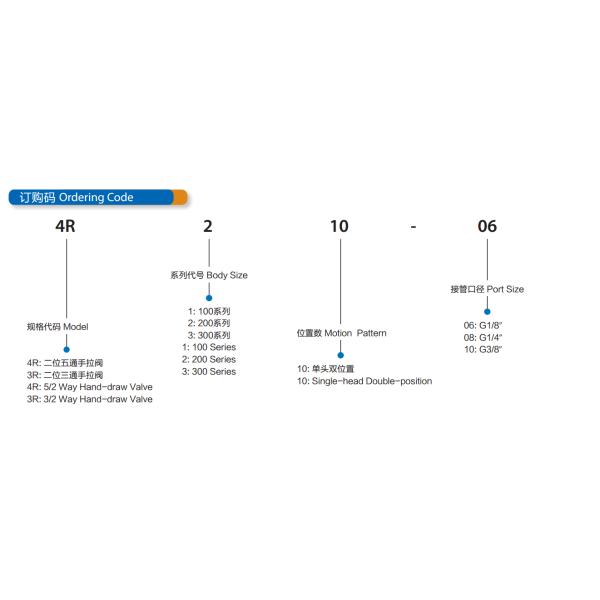

3R Series Two Position Three Way Two Position Five Way hand Draw valve port size G1/8”,G1/4” e.g 3R210-08S with Spring Return


Quick Detail:


* 3R series Hand Draw Valve

* Aluminum Alloy Material

* Two Position Three Way,Two Position Five Way

* Port Size G1/4,G1/8

* With spring return for option

* Easy to operate,Long service life


Applications:


3R series hand draw valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system


Specifiction

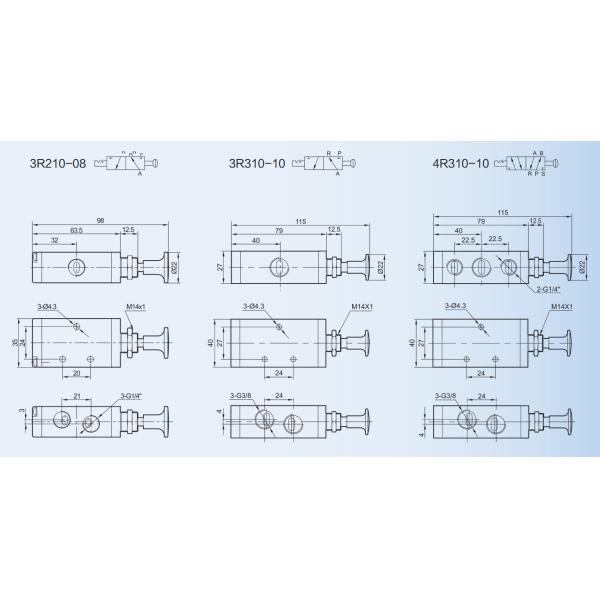

Model4R110-064R210-064R210-083R210-063R210-084R310-084R310-103R310-083R310-10
Working Medium40 Micron Filtered Air
Position and Way5/2 Way3/2 Way5/2 Way3/2 Way
Effective Sectional Area10mm214mm216mm214mm216mm225mm230mm225mm230mm2
(CV=0.56)(CV=0.78)(CV=0.89)(CV=0.78)(CV=0.89)(CV=1.40)(CV=1.68)(CV=1.40)(CV=1.68)
Port SizeAir Inlet=Air Outlet=Exhaust=G1/8″Air Inlet=Air Outlet=G1/4″Air Inlet=Air Outlet=Exhaust=G1/8″Air Inlet=Air Outlet=Exhaust=G1/4″Air Inlet=Air Outlet=Exhaust=G1/4″Air Inlet=Air Outlet=G3/8″Air Inlet=Air Outlet=Exhaust=G1/4″Air Inlet=Air Outlet=Exhaust=G3/8″
Exhaust=G1/8″Exhaust=G1/4″
Working Pressure0~0.8MPa
Operating Temperature0~60℃
